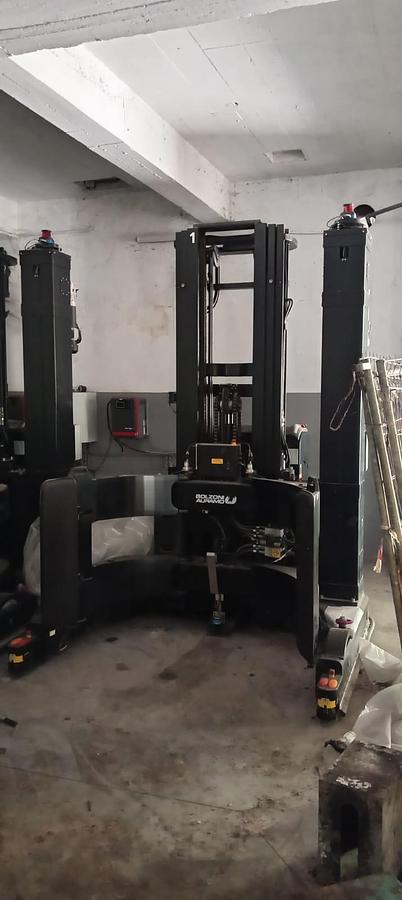

Automated Guided Vehicle for Cylindrical Loads Handling

Manufacturer: Rocla Oy (Logisnext Group, Finland)

Type: Automated Guided Vehicle (AGV) – counterbalanced model with bale clamp (AWTsc)

Industrial Applications:

Automated handling of bales, rolls, pallets or cylindrical loads in paper mills, packaging plants, logistics hubs, and automated warehouses. Designed for 24/7 operation in narrow aisle and high-density racking systems.

Main Technical Specifications:

• Model: AGV AWTsc – 40TF8300E
• Year: 2020
• Nominal capacity:
• 3200 kg at 760 mm load center
• 6400 mm lift height
• Battery type: 420 Ah
• Unladen weight: 4520 kg
• Power supply: 24 V DC
• Rated power consumption: 6.8 kW
• Drive control: fully automated
• Turning radius: compact for narrow aisles
• Safety equipment:
• 360° laser scanners
• Obstacle detection sensors
• Intelligent automatic braking
• Control interface: centralized software-managed fleet system
• Autonomy: ~8–16 hours (depending on battery configuration)

Machine Usage

The Rocla AWTsc is a heavy-duty AGV designed to handle bales or rolls without pallets using its integrated clamp. Its counterbalanced design enables rack access without side supports. It is ideal for environments requiring precise, repetitive handling of cylindrical loads and provides fully automated operation with zero human intervention.

Features / Differentiators

• Bale clamp attachment for direct roll/bale handling
• Full autonomy with intelligent fleet control
• High load and lift capacity (up to 3200 kg at 6.4 m)
• Advanced safety package included as standard
• Suitable for high-density and narrow aisle operations
• Integrates easily with warehouse management systems (WMS)
