Slitting Line 1000–1250 mm

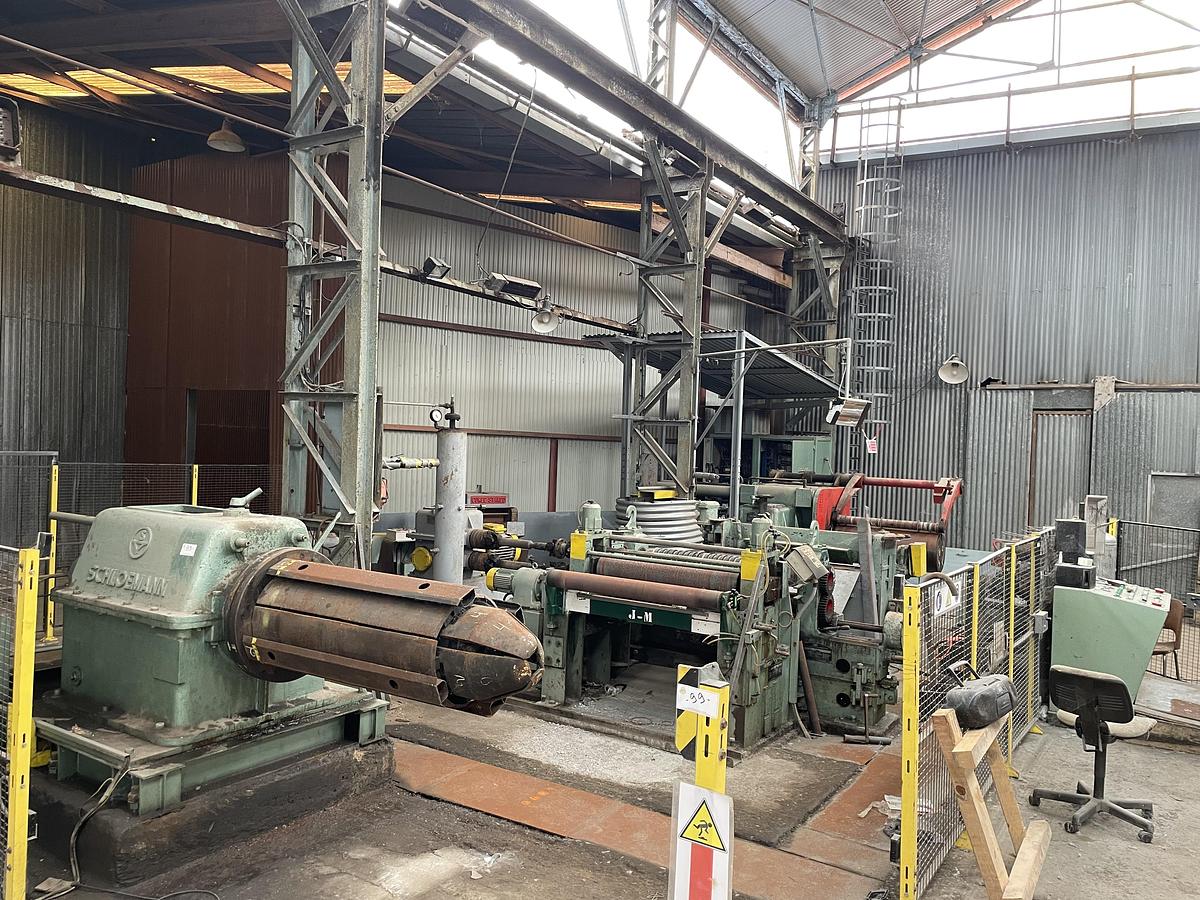

1. Decoiler

Brand : SCHLOEMANN

Type : Hydraulic expanding decoiler

Function : Coil holding and controlled rotation

Expansion control : Hydraulic

Frame : Welded steel base with integrated brake

Estimated capacity : 8–12 tons

Coil bore : Ø 508 mm

🔹 2. Straightener / Pinch Roll

Manufacturer : COMEC (Société de Constructions Mécaniques de Creil)

Type : Pinch roll and leveler

Control : Mechanical

Order number : 1305.1268

Recommended lubricants : Shell Macoma, Tellus, Alvania (as per nameplate)

Function : Feeds and flattens strip before slitting

Secondary role : Synchronized strip puller

🔹 3. Slitter

Manufacturer : COMEC

Type : Circular blade slitting machine

Drive : Mechanical gear train

Blade adjustment : Manual

Blades installed : ~10 sets (visible)

Function : Longitudinal slitting of metal sheets into narrow strips

🔹 4. Shear (End Cropper)

Manufacturer : COMEC STAMCO

Type : Rotating or inline shear

Function : End cropping or final length cut

Control panel : Electromechanical (visible on photo)

Machine Application

Complete line for metal coil slitting, producing narrow strips from master coils, with upstream flattening and final end cutting.

Features / Differences

– Heavy-duty hydraulic decoiler by SCHLOEMANN

– Mechanical straightening section from COMEC

– Manual-adjust slitter with circular blades

– Outfeed shear for end trimming or final cut-to-length

– Older but industrial-grade line, suited for medium gauge materials
