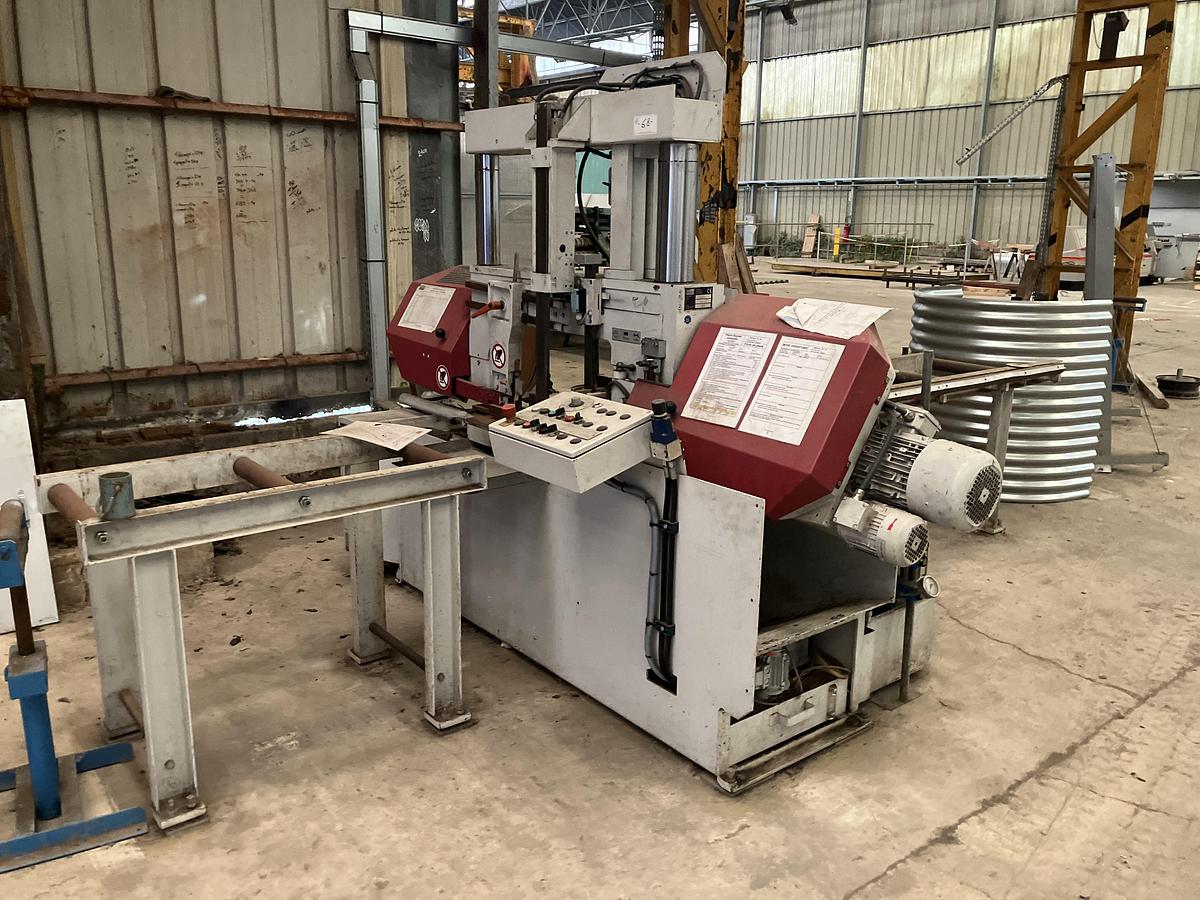

Horizontal Bandsaw, Dual-Column

Machine type : Horizontal bandsaw, dual-column

Manufacturer : Behringer

Model : HBP 313

Serial number : 10009454

Year of construction : 2016

Cutting capacity (round) : Ø 310 mm

Cutting capacity (rectangular) : 310 × 310 mm

Blade dimensions : 4,470 × 34 × 1.1 mm

Blade speed : 15 to 110 m/min (adjustable)

Control type : Semi-automatic

Blade guide : Carbide

Feed descent : Hydraulic

Clamping system : Hydraulic vice

Power supply : 400 V / 50 Hz / 3~

Motor power : 4 kW

Machine Application

The Behringer HBP 313 is a horizontal bandsaw designed for precise cutting of profiles, solid bars, tubes, and full-section steel. It is ideal for metal fabrication shops, steel structure production, and sawing centers.

Features / Differences

– Dual-column frame ensures stability and rigidity during cutting.

– Fully hydraulic system for saw frame feed and material clamping.

– Carbide blade guides provide straight, vibration-free cuts.

– Wide blade speed range (15–110 m/min) adapts to various steel grades and materials.
