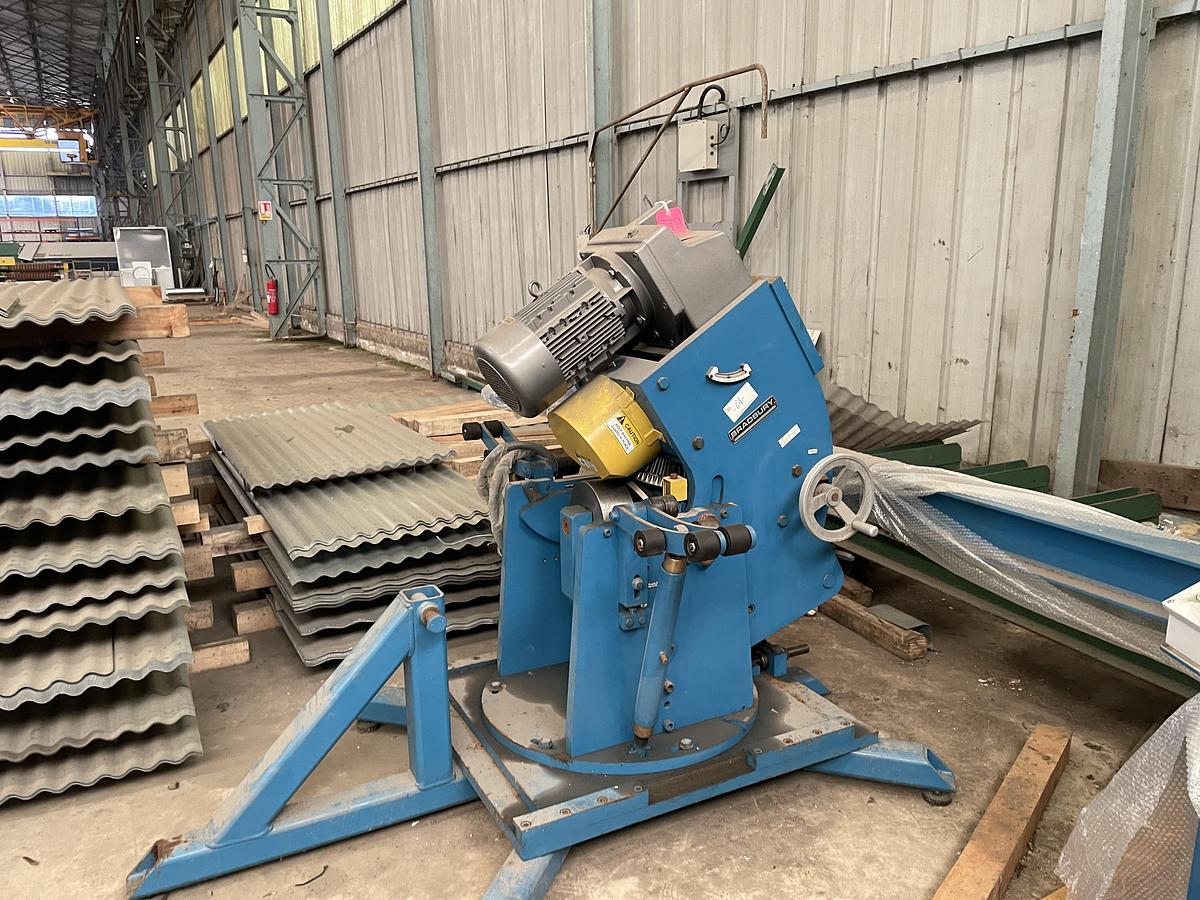

Motorized bending roll

Machine type : Motorized bending roll

Manufacturer : Bradbury

Control unit : MCE (industrial electrical control panel)

Supply voltage : 380 V

Phase : 3

Frequency : 50 Hz

FLA (Full Load Amperage) : 17.6 A

Main motor FLA : 15 A

Disconnect short-circuit rating : 200,000 A

Internal short-circuit rating : 65,000 A

Electrical diagram no. : ED3033

Electrical serial no. : B014541

Machine Application

The Bradbury bending roll is used for rolling and forming sheet metal into precise cylinders, cones, or arcs. It is employed in the production of ducts, tanks, tubes, or metal shells, and can be integrated into profiling or cutting lines.

Features / Differences

– Dedicated MCE control panel, with high-capacity electrical protection (200,000 A).

– Main motor rated at 15 A, operating on standard industrial 3-phase power.

– Full electrical documentation under reference ED3033 for operation and maintenance.

– Compatible for integration within Bradbury automated coil processing lines.
