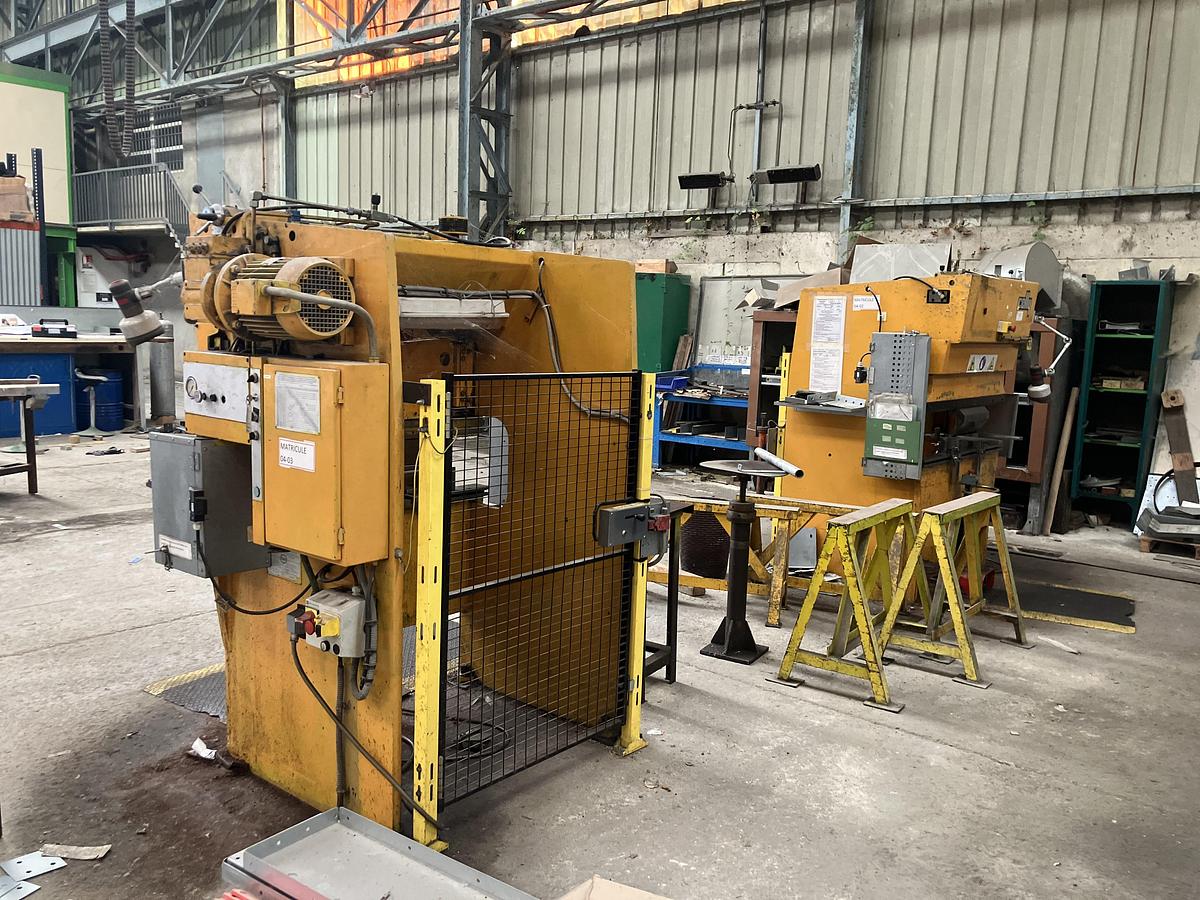

30T Hydraulic Pressbrake

Machine type : Hydraulic press brake

Model : 301 B

Manufacturer : Colly

Bending force : 30 tons

Max pressure : 220 kg/cm²

Ram stroke : 100 mm

Hydraulic unit type : 6YF61612

Motor power : 5 HP (≈ 3.7 kW)

Voltage supply : 220 V

Start-up current : 17 A

Frequency : 50 Hz

Machine Application

This press brake is designed for forming small sheet metal parts in mild steel or stainless steel, ideal for workshops and general metal fabrication tasks such as brackets, enclosures, or support elements.

Features / Differences

– Compact machine, ideal for small workshops or limited spaces

– 30 t capacity suitable for bending up to 3–4 mm thick sheets depending on material

– Standard hydraulic group (6YF61612) for easy maintenance

– 220 V motorization, compatible with low-voltage 3-phase networks

– Controlled start-up current of 17 A, minimizing inrush power demands
