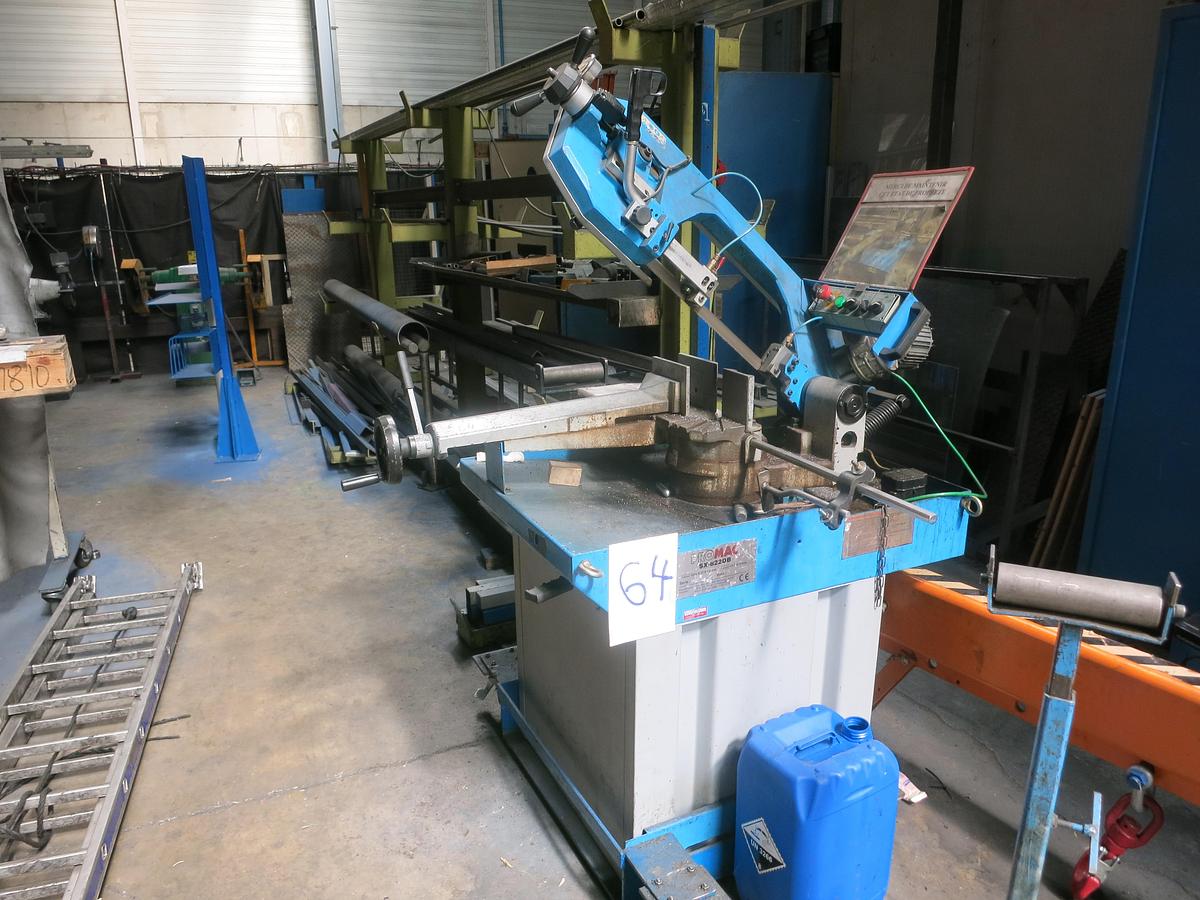

Manual metal band saw

Model: SX‑822DB

Type: Manual metal band saw

Power supply: 230 V single-phase or 400 V three-phase

Motor power: 1.1 kW

Cooling system: integrated

Blade tension gauge: yes

Saw bow swivel: up to 60° right

Vice: quick-release

Blade guidance: ball bearings and carbide blocks

Cutting capacities

• Round tube at 90°: Ø 225 mm
• Square profile at 90°: 225 × 225 mm
• Flat material at 90°: 245 × 160 mm
• Round tube at 45°: Ø 160 mm
• Square profile at 45°: 160 × 160 mm
• Round tube at 60°: Ø 100 mm
• Square profile at 60°: 100 × 100 mm

Blade speeds:

• 230 V version: 65 m/min
• 400 V version: 45 and 90 m/min (dual speed)

Blade size: 2480 × 27 × 0.9 mm

Working height: 980 mm

Machine dimensions (L × W × H): 935 × 1500 × 1570 mm

Weight: 265 kg

Noise level: 71.3 dB(A)

Machine Usage

Manual band saw designed for cutting tubes, solid bars, flat or shaped steel profiles. Suitable for mechanical workshops, industrial maintenance, and metal fabrication. Capable of straight and angled cuts.

 Features / Differences

• Dual-speed motor available in 400 V version (45 / 90 m/min)
• Built-in coolant system extends blade life
• 60° tilting saw bow enables accurate mitre cuts
• Heavy-duty blade guides with carbide pads
• Ergonomic working height and stable 265 kg frame
• Integrated blade tension gauge for precise adjustment
