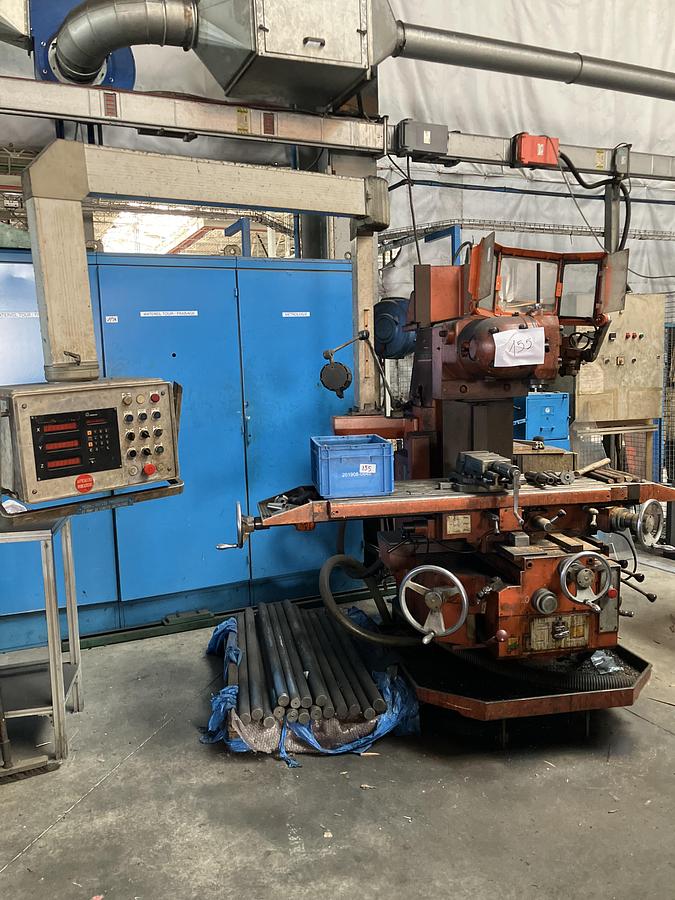

Heavy Universal Milling Machine with Heidenhain LS 501 Digital Readout

Heavy Universal Milling Machine with Heidenhain LS 501 Digital Readout

Manufacturer

Unidentified (German-made equipment – Heidenhain components)

Type

Heavy-duty manual universal milling machine with 3-axis digital readout

Industrial Applications

• Precision mechanical milling
• Steel, cast iron and alloy component machining
• One-off or small series production
• Deep-pass material removal
• Suitable for general workshops and industrial maintenance

Main Technical Specifications:

• Heidenhain LS 501 linear encoder system
• Feed rates: from 32 mm/min to 508 mm/min
• Graph-supported speeds up to 2000 mm/min
• Mechanical gearbox with lever combination for feed adjustment
• Horizontal spindle with optional vertical head
• Analog speed chart and control interface
• Multi-axis movement with X / Y / Z digital display

Machine Usage

Universal milling machine designed for heavy-duty metal machining tasks. Ideal for precision milling of large parts such as frames, blocks, and welded assemblies. Suitable for roughing and finishing operations like facing, slotting, and boring in steel or cast components.

Features / Differentiators

Equipped with a Heidenhain LS 501 digital system, this machine offers precise coordinate tracking and feed control without the complexity of CNC. It stands out by its fully mechanical feed gearbox, making it a durable and reliable choice for intensive shop floor work.
