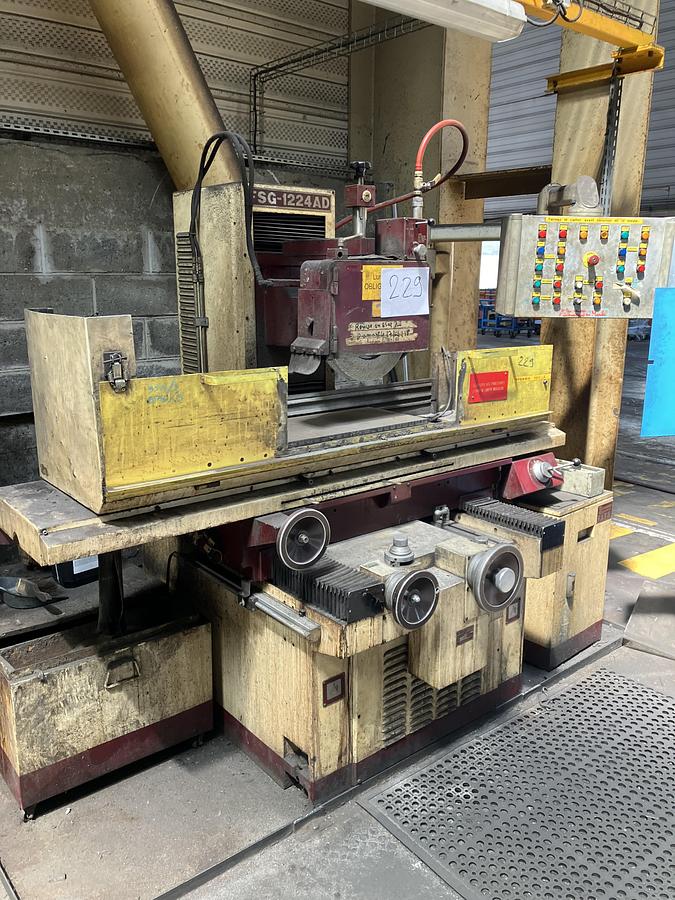

Automatic Hydraulic Surface Grinder

Type: Automatic hydraulic surface grinder – table size 600 × 300 mm

X-axis travel: 650 mm (manual max ~700 mm)

Y-axis travel: 305 mm

Z-axis travel (wheelhead): 406 mm

Grinding capacity: 610 × 305 mm

Table speed: 5–25 m/min (16–82 fpm)

Z-axis speed: 0–675 mm/min (0–2.2 fpm)

Spindle motor: 3.75 kW (5 HP) – 500–1,800 rpm

Hydraulic pump: 2 HP

Crossfeed drive: 1 kW servo

Wheel size Ø × W × bore: 355 × 50 × 127 mm

Footprint (L × W × H): ~2,950 × 1,490 × 2,080 mm

Weight: approx. 2,200 kg

Machine Usage

Designed for precision surface grinding of flat metal components, tooling, dies, and parts requiring high-quality finishes.

 Features / Differences

• Automatic hydraulic feeds for both table movements
• Magnetic chuck (600 × 300 mm) secures workpieces firmly
• Servo-driven crossfeed for precise transverse control
• Large wheelhead Z-travel (406 mm) enables plunge grinding and profiling
• Heavy-duty build (~2,200 kg) ensures thermal & vibrational stability
