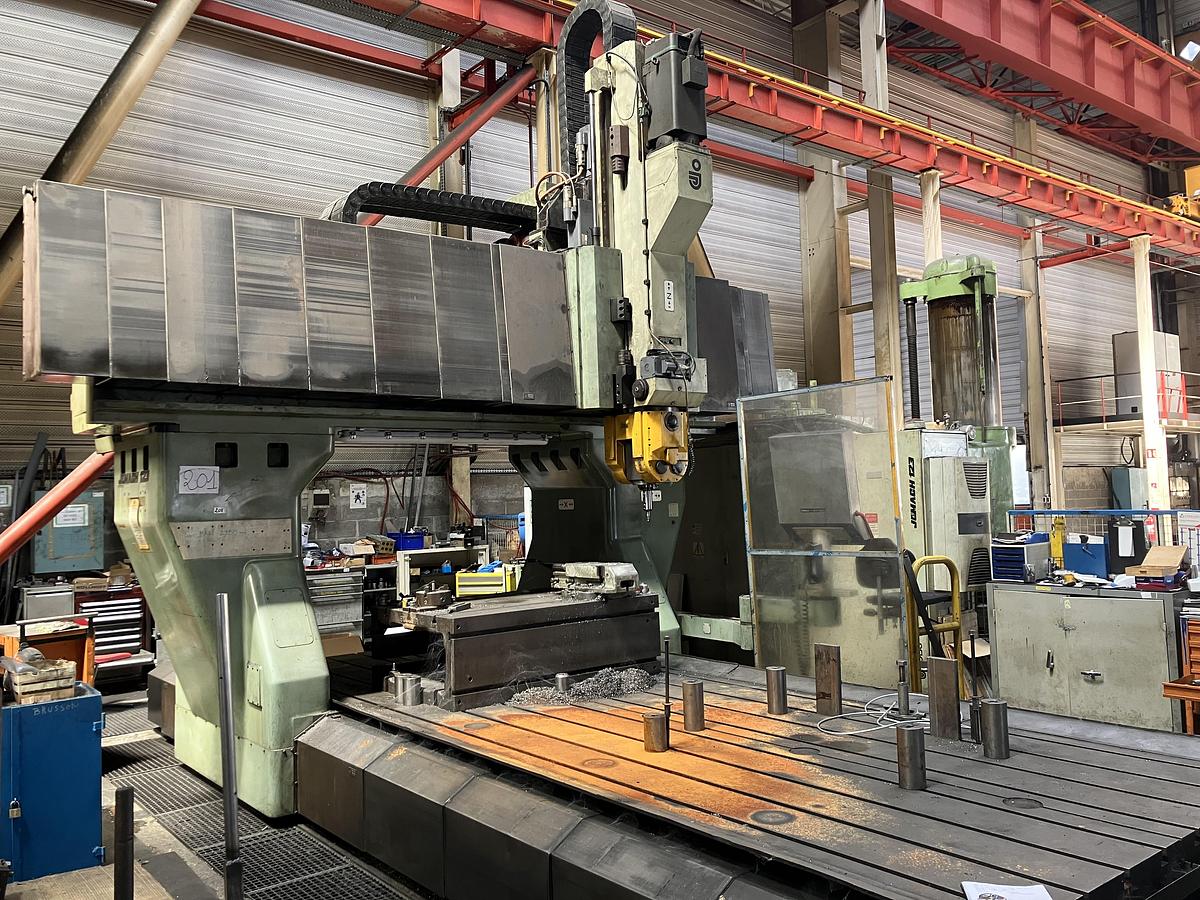

GANTRY MILLING MACHINE

Model: JOMACK 123

Manufacturer: JOBS S.p.A. (Italy)

Type: Gantry milling machine – fixed bridge with moving table

CNC Control: FIDIA C20 AXON

Working travels:

• X-axis: 4000 mm
• Y-axis: 2700 mm
• Z-axis: 1000 mm

Total weight: 38,000 kg

Head type: Vertical motor-driven, manually or indexable rotating head

Structure:

• Fixed dual-column gantry
• Movable vertical ram (Y-axis)
• Heavy-duty T-slot table (X-axis movement)

CNC interface:

• FIDIA C20 AXON (19" screen, Windows 10, 9-axis interpolation, USB, Ethernet, ViMill, RTCP...)
• Dual processor (UI + real-time execution)

APPLICATION OF THE JOBS JOMACK 123

Heavy-duty gantry milling machine used for machining large-size and complex parts in general engineering, mold & die, aerospace, and energy industries. Suitable for milling, drilling, and boring operations on steel, cast iron, or aluminum structures.

PARTICULARITIES OF THE JOBS JOMACK 123:

• Large machining envelope (X: 4 m, Y: 2.7 m, Z: 1 m)
• Heavy-duty fixed gantry with independent moving table
• Vertical motor-driven head with manual/indexable orientation
• Ribbed cast-iron table with T-slots for secure fixturing
• FIDIA C20 AXON CNC: high-end system with 9-axis interpolation, ViMill, RTCP, modern UI
• Suitable for intensive cycles and high-precision work
