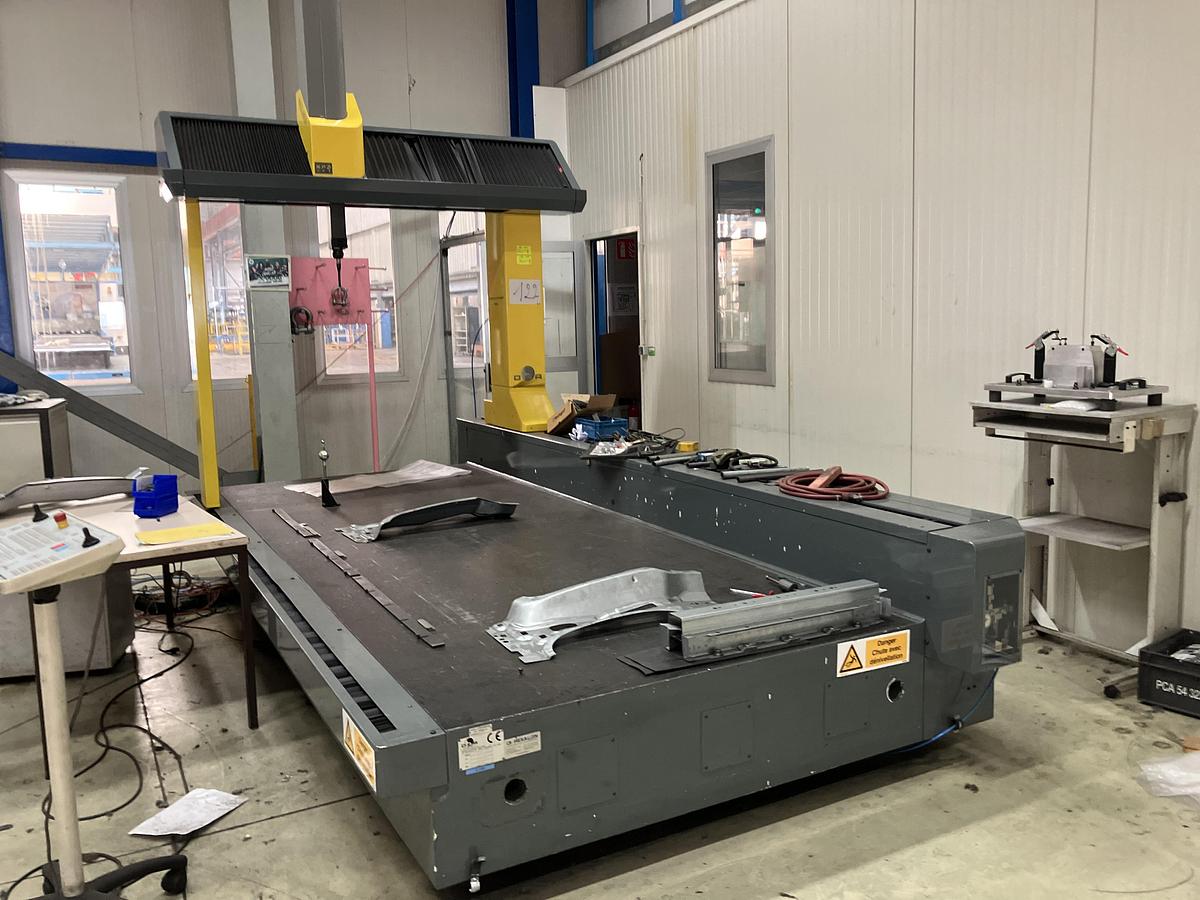

COORDINATE MEASURING MACHINE

Model: TYPHOON 15.33.13

Manufacturer: Brown & Sharpe – DEA SpA (Hexagon Group)

Serial number: TY15000033

Year of manufacture: 2003

Location: Str. del Portone 113, 10095 Grugliasco (TO), Italy

Structure type: Bridge-style coordinate measuring machine (CMM)

Measuring volume (X / Y / Z):

• X: 1500 mm
• Y: 3300 mm
• Z: 1300 mm

Guiding system:

• Air bearings on granite and lightweight alloy structure
• Dynamic temperature compensation

Scale resolution: 0.1 µm (optical)

Typical volumetric accuracy (MPEe): ~2.5 + L/300 µm (depending on configuration)

Probe head:

• Renishaw PH10 / SP25 / TP200 compatible
• Automatic indexable orientation

Controller:

• DC800 or equivalent Hexagon system
• Software: PC-DMIS, QUINDOS compatible

APPLICATION OF THE DEA TYPHOON 15.33.13

High-end coordinate measuring machine (CMM) used for precision inspection of complex medium-to-large components. Ideal for automotive, aerospace, and general mechanical sectors.

 FEATURES / DIFFERENTIATORS – TYPHOON 15.33.13

• Extended measuring envelope: 1500 × 3300 × 1300 mm
• High accuracy with thermal compensation
• Motorized indexable head for multi-angle probing
• Compatible with scanning probes and multipoint systems
• Rigid granite base and lightweight bridge construction
