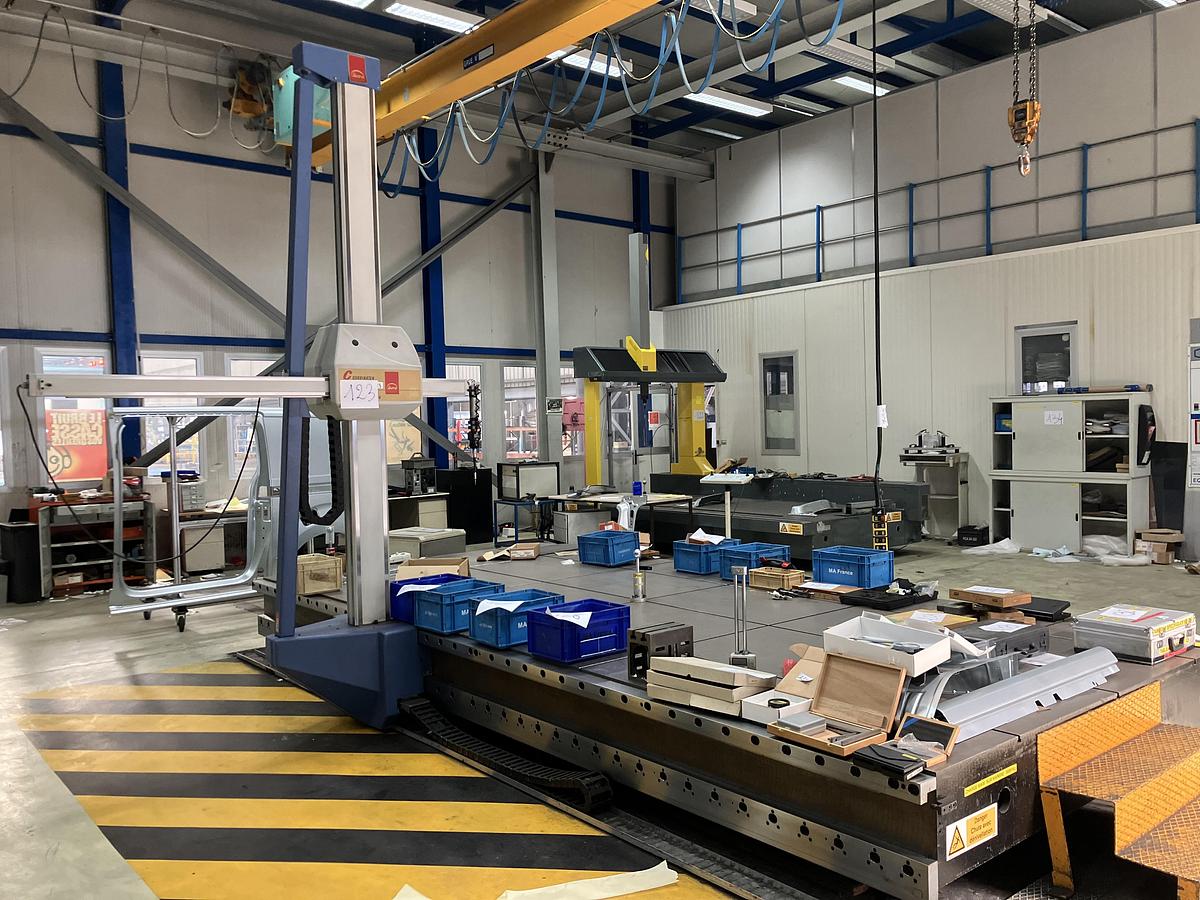

Three-dimensional measuring machine

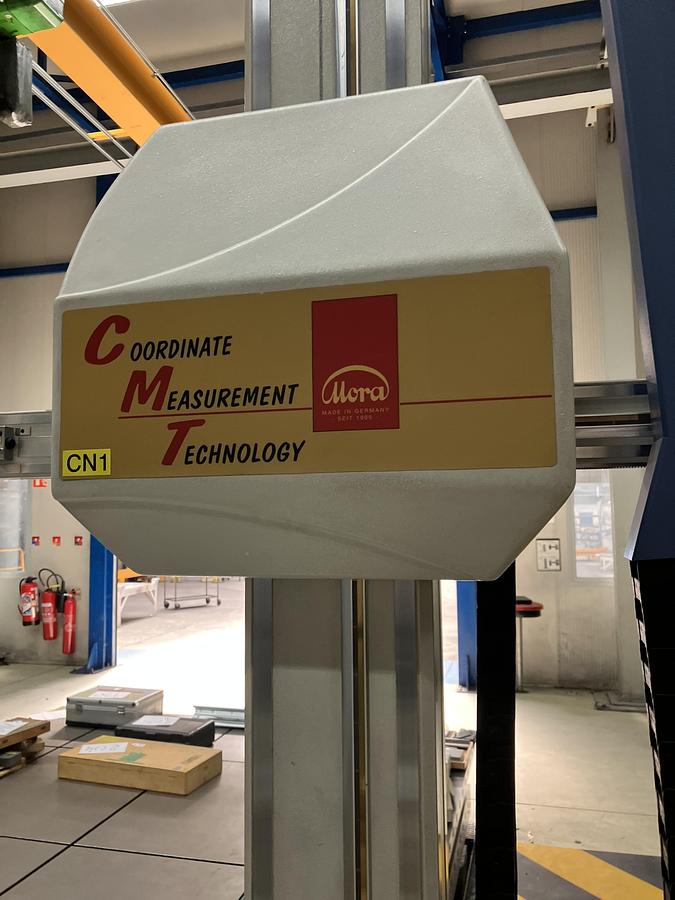

Model: MORA 0151.20.15.55

Type: Coordinate Measuring Machine (CMM)

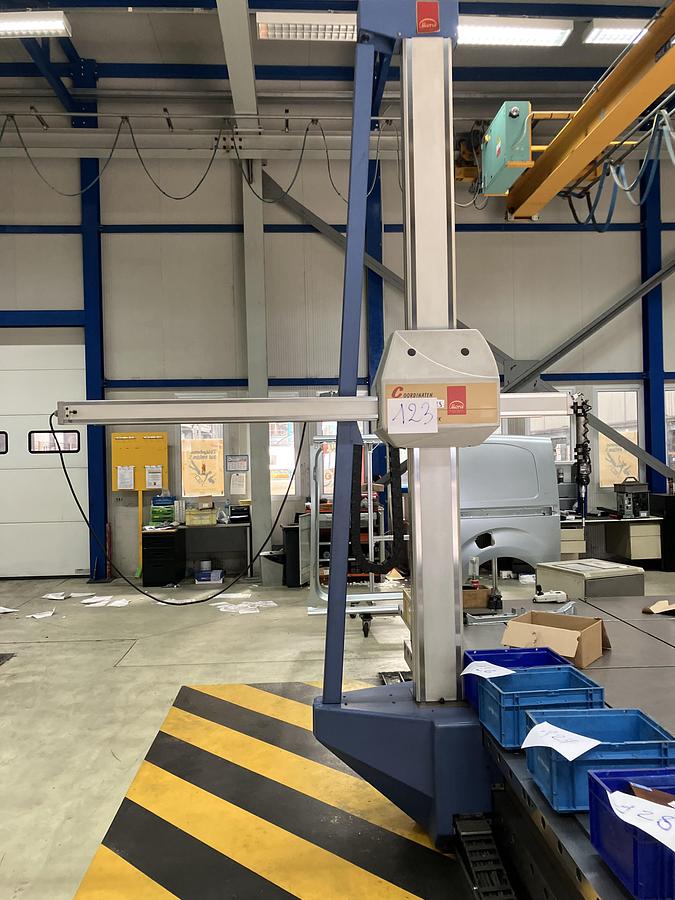

Structure: Bridge-type on granite table

Granite table size: 5500 × 2500 mm

Measuring range (X × Y × Z): Approx. 5500 × 2000 × 1500 mm

Base material: Composite granite-steel

Guide system: High-precision prism rails with ball screw or direct drive

Accuracy: 16 + L/100 µm (L in mm)

Thermal compensation: Optional

Head compatibility: PH6, PH10T, PH10M

Probing systems: TP20, TP200, optical and laser probe options

Control system: CNC with manual handbox (wired or wireless)

Software: Compatible with Inca3D and dedicated metrology platforms

Estimated weight: Several tons (heavy-duty for optimal stability)
