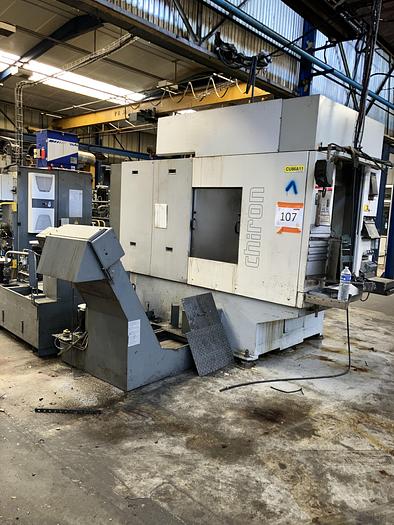

CHIRON DZ 15 W

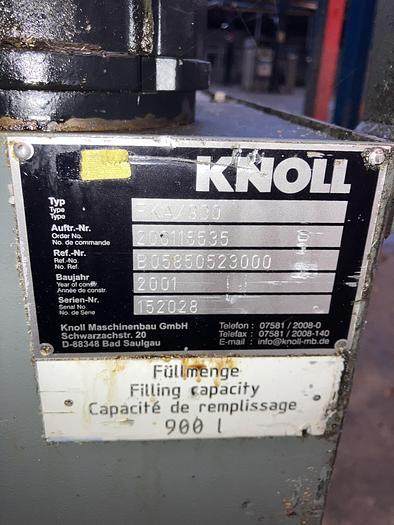

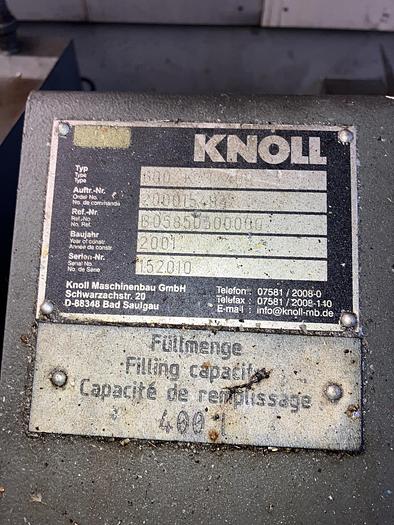

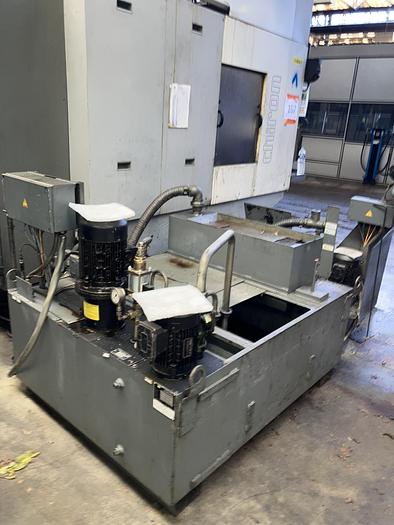

With KNOLL FKA/900 and KNOLL 600 K 1/400 filler

Filling capacity: 900L and 400L

Machine specifications:

• Courses (X, Y, Z):
• Maximum travel distances:
• X axis: 300 mm
• Y axis: 400 mm
• Z axis: 425 mm
• Max. power: 14.00 kW
• Number of pins: 2
• Maximum spindle speed: 12,000 rpm
• Tool change time (chip-to-chip): 2.10 s
• Rapid feed (X, Y, Z) max.: 60 – 60 – 60 m/min
• Maximum number of tools: 2 x 12
• Tool taper type: HSK-A63
• Part changing device: CHIRON basket tool changer
• Table: Turntable for coin
• Clamping surface: 2 x 660 x 400 mm²
• Control: Siemens 840D
• Existing special equipment:
• Automatic loading door
• Preparing the machine for through-spindle cooling
• 1050mm chip conveyor
• Cooling equipment
• Hydraulic unit
